BROAD Tilt bracket is a very fast and cost-effective roof support solution that can be applied to most types of roofs and achieve adjustable tilt angle between 0deg to 60deg at most.
item no.:
BROAD Power Tracklead time:
within 1 weeksproduct orgin:
Xiamen,Chinabrand:
BROADshipping port:
Xiamen,Chinapayment:
TTcolor:
Black silver Gold and OEM
BROAD moverable Power Track socket surface uses an excellent paintto be durable and not fade for long time.

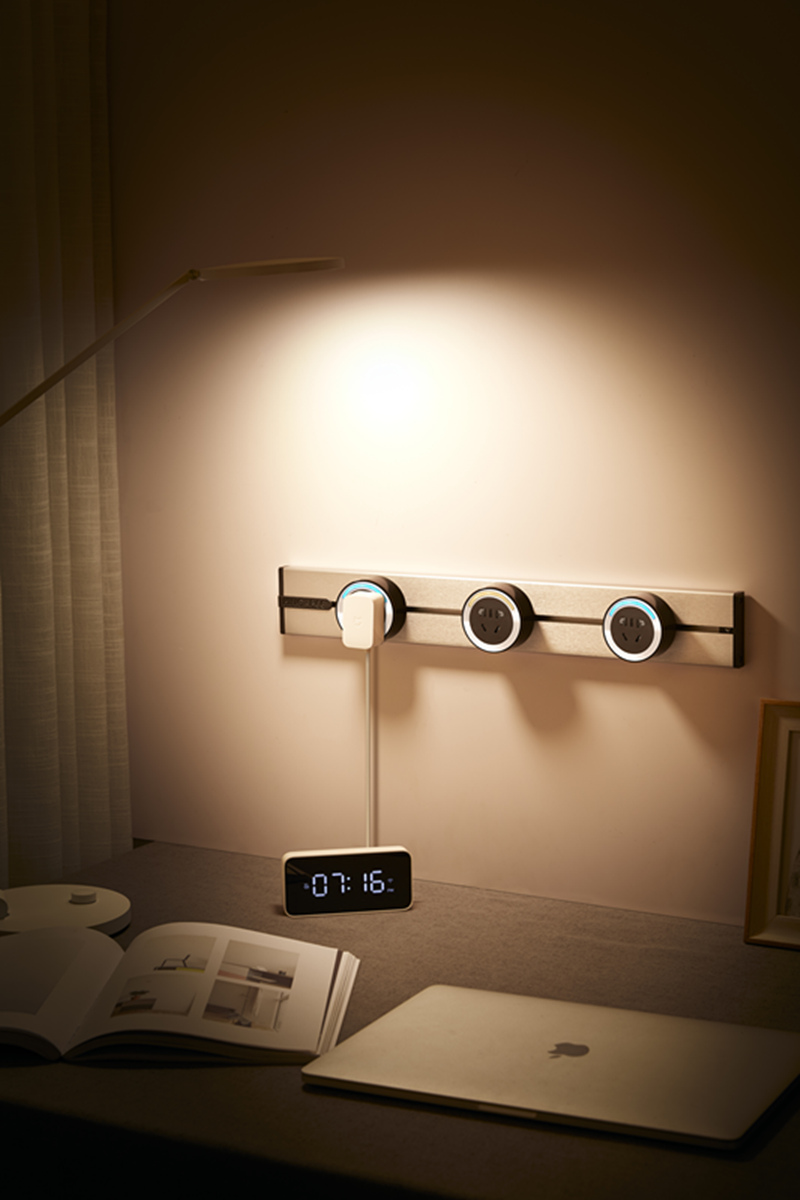

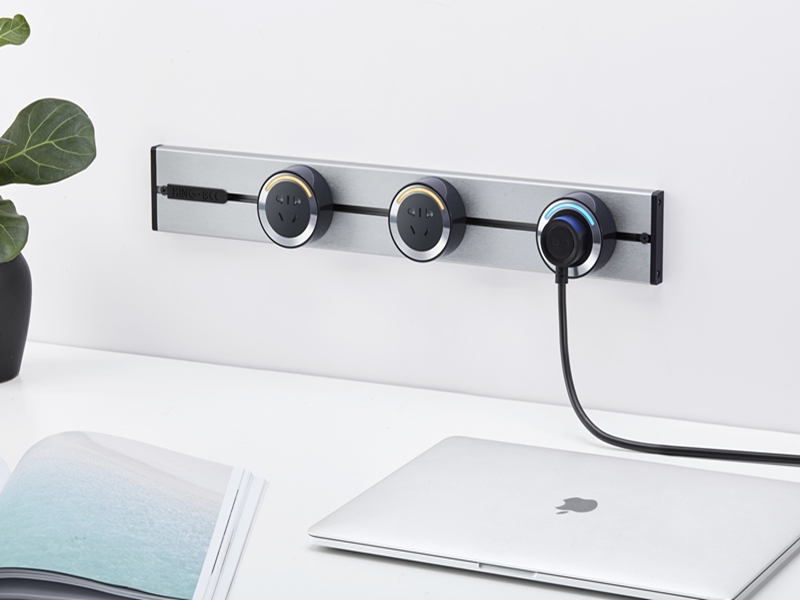

Easy installation saves time and effort so can be widly used in the office,meeting room,hotels and other working places.
no clear line,more simple and safer,enhance the overall decoration taste.

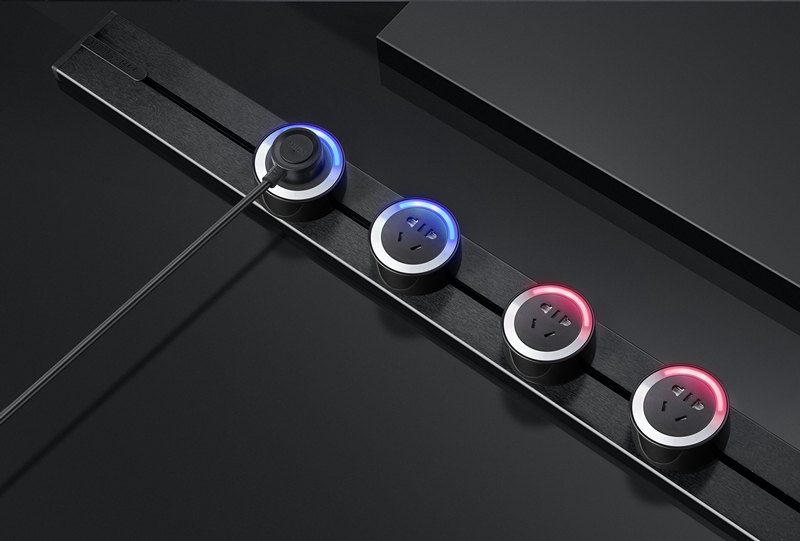

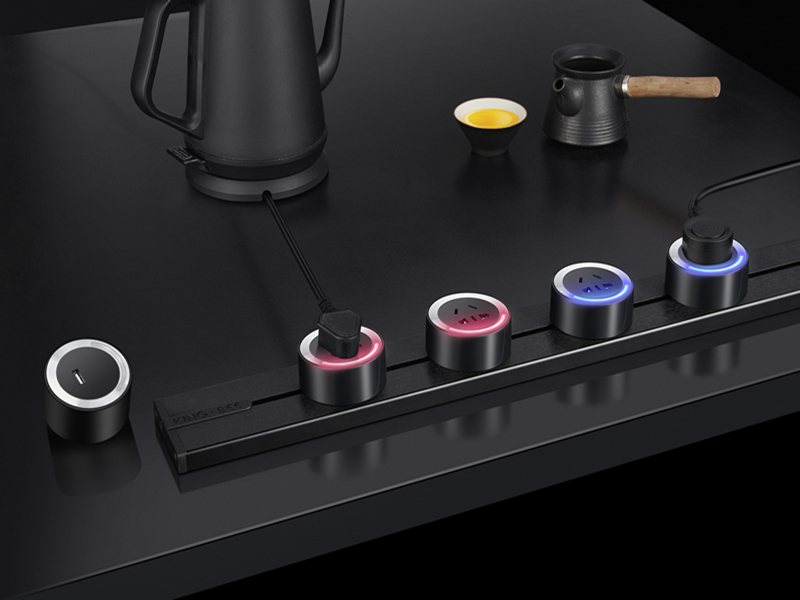

BROAD power track rail allows you to install or remove the device in seconds. You can also move the device along it, achieving a certain positioning. The rail allows you to mount one, two, three or more devices in the desired sequence with the length to be customized.
Overview
Futures
Power rail Socket/Power Track /Power Track Socket
| Power Track Socket Technical Specification | |||||
| Track | |||||
| Rated voltage | 250V | ||||
| Rated current | 32A | ||||
| IP code | IP30 | ||||
| Specification length | 500 | 750 | 1000 | 1400 | 2000 |
| Actual length（mm） | 505 | 750 | 995 | 1415 | 2010 |
| Colour | Blue | Rose gold | Black | Silver | |
| Width x Thickness | 80.5mmx20mm | ||||
| Installation | Surface installation:KB-001-1 | Recessed:KB-001-2 | |||
| Track shell material | Aluminum alloy 6063-T5 + AAO | ||||
| Insulation Materials | Flame retardant Class V-0 PVC | ||||

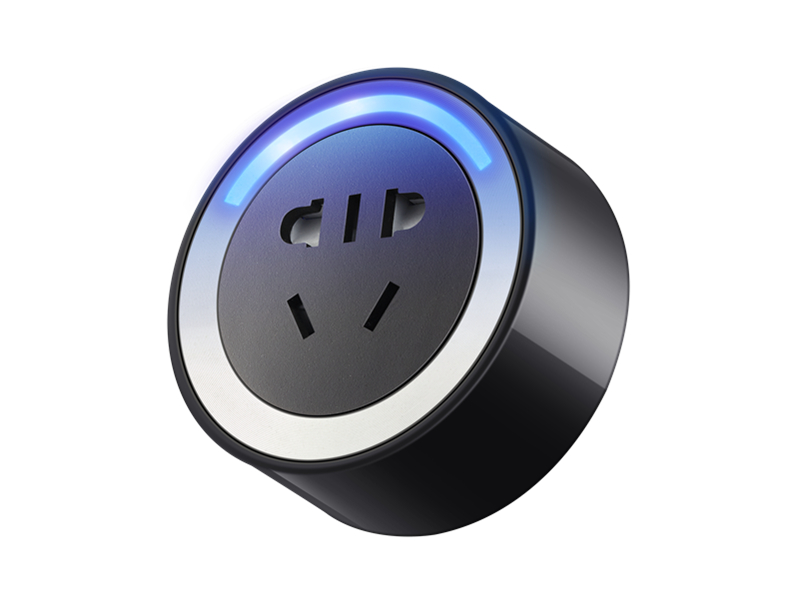

| Socket | |||||
| Rated voltage | 250V | ||||
| Rated current | 10A | ||||
| Jack type | 2 holes & 3 holes (conforming to GB 2099.3-2015 standard) | ||||
| Safety door | Yes | ||||
| LED color | Blue | Red | Yellow | ||
| Colour | Blue | Rose gold | Black | Silver | |
| Width x Thickness | 62mmx13mm | ||||
Installation Steps
1. Install the module on the rail.
2. Press and hold the release button of the mechanism.
3. Turn the module clockwise.
Why to choose BROAD
BROAD Tilt bracket is a very fast and cost-effective roof support solution that can be applied to most types of roofs and achieve adjustable tilt angle between 0deg to 60deg at most.
L feet kit design is already mature for tin roof solar panels installation around the world, especially widely used in residential and industrial buildings.
The carbon steel ground solar mounting system with ground screw as foundations is suitable for medium-sized and large scale commercial solar projects.
A variety of suitable solar mounting systems are provided for different standing seam roof types and all are non-drilling solutions using kliplok fixture to fit with the roof shapes perfectly.Using kliplok hook to protect the metal roof being waterproof all the time without drilling holes on the metal roof sheet.
Double piling solution is highly adaptable to different terrains and environments.And it’s High flexibility makes easier and quicker installation and other solar mounting solutions.
Good quality and beauty appearance fence can apply in large solar plant site.Metal Mesh Protect Solar Ground mounting systems Farm.
Floating Solar Mounting System is designed specially for pools and sea.
The solar ground screw have different size and thickness, which can suit for different soil condition. Also we accept customized with your own design.
