Single Pile Ground Solar Mounting System

Ground Solar Mounting System

Single Pile Ground Solar Mounting System

Single Pile Mounting with Concrete Foundation

Single Pile Mounting with Concrete Foundation

Widely applied to large PV projects to improve installation efficiency by quick installation solution at high-steep sloped condition.
  • item no.:

    BROAD GS2 Mount
  • product orgin:

    Xiamen,China
  • brand:

    BROAD
  • payment:

    TT
  • Material:

    Aluminum or Q235B
  • Snow Load:

    Up to 200cm
  • Wind Speed:

    Up to 60m/s
  • Install Site:

    flat or uneven land
  • Foundation Type:

    Piling post
  • product details

Overview

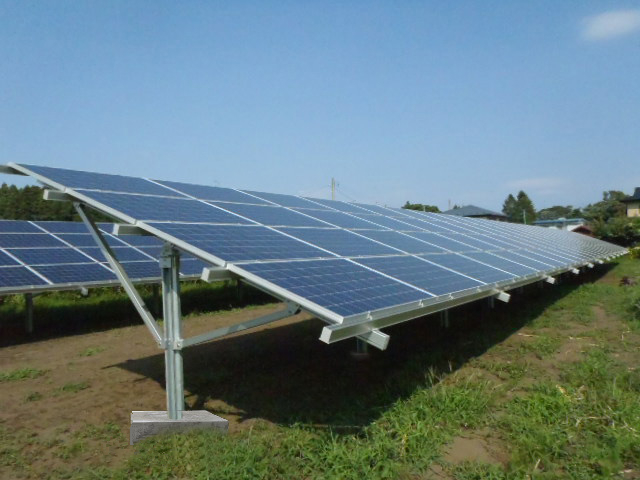

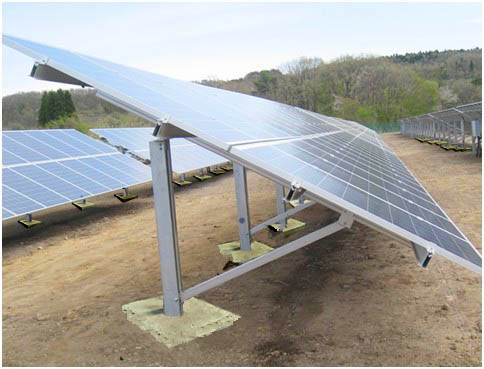

Piling ground mount solar with concrete blocks as foundations has good strength for solar panels array.



Pile mounting concrete for even and uneven land

Features

1. Workable for any type soil conditions.

2. Both Aluminum material or Q235B carbon steel can be workable.

3. North-South and West-East orientation can be adjustable.

4. OEM is welcome

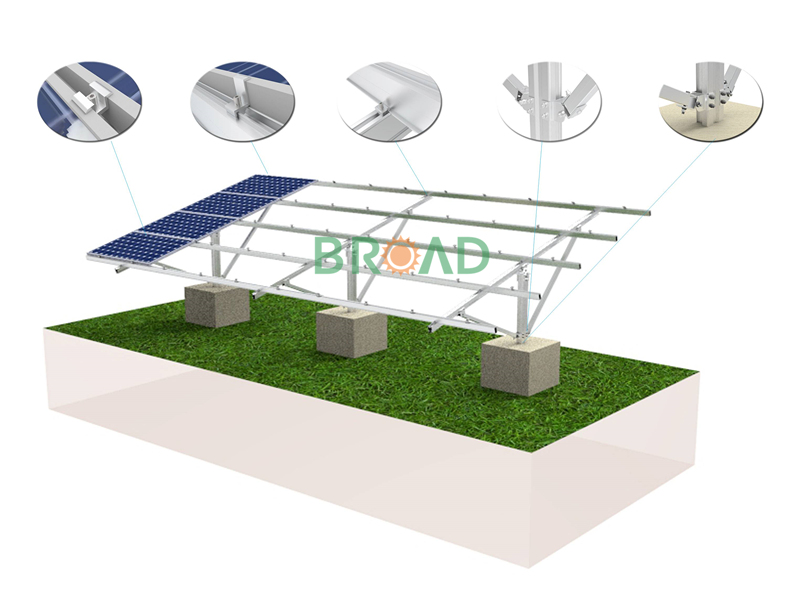

Pile mounting structure on flat landconcrete mounting systems installation

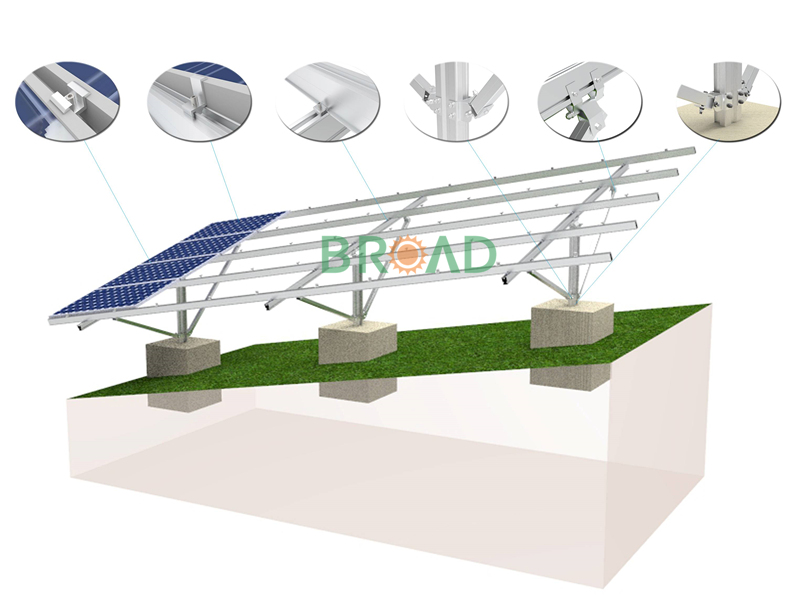

Pile mounting structure on inclined landinclined solar projects installation

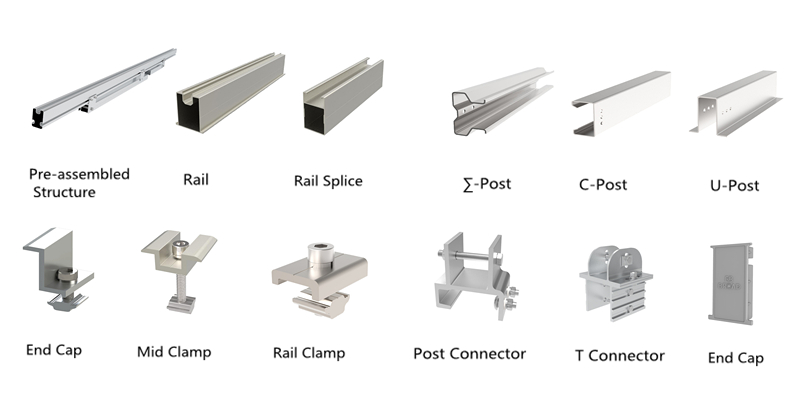

Components

Pile mounting solutions components


Enquiry

Warranty : 10 years for BROAD products

Duration : more than 25 years

Feel free to contact with us about any query about solar mounting systems.


FAQ

Q1 : What is the best off grid solar system?

A1 : BROAD Off Grid single pile ground mount system. If you are on a hunt for a commercial power system, the BROAD single pile ground mount system is the best choice for you. Its high flexibility makes easier and quicker installation than other solar mounting solutions.


Q2 : What is a mounting system?

A2 : BORAD solar mounting system is a special support designed for placing, installing and fixing the solar panel in the solar photovoltaic power generation system. General materials are aluminum alloy and carbon steel.
