Single Pile Ground Solar Mounting System

Single Pile Ground Solar Mounting System

Piling ground solar mounting structure is the most suitable solution for inclined land like hillside area.
  • item no.:

    BROAD GS2 Mount
  • product orgin:

    Xiamen,China
  • brand:

    BROAD
  • payment:

    TT
  • Material:

    Aluminum or Q235B
  • Snow Load:

    Up to 200cm
  • Wind Speed:

    Up to 60m/s
  • Install Site:

    flat or uneven land
  • Foundation Type:

    Piling post
  • product details

Overview

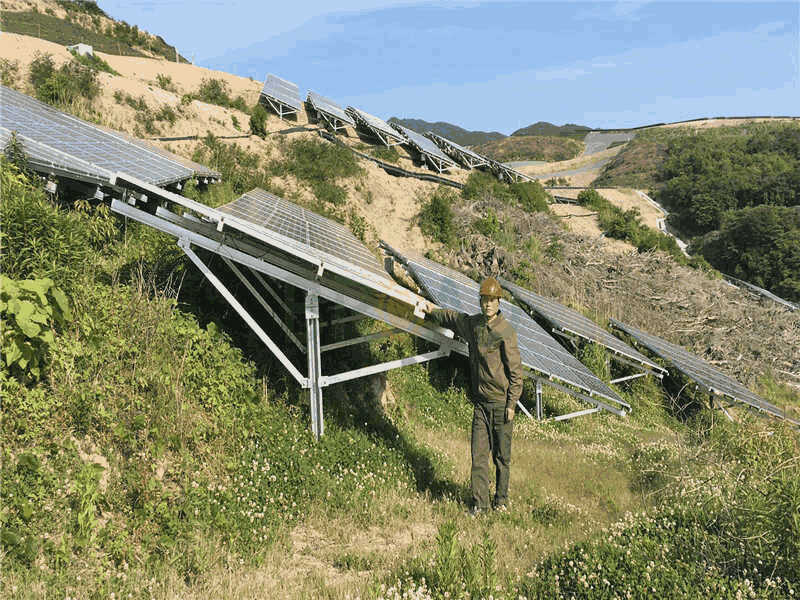

Pile ground mounting structure is completely workable by adjusting the driving depth to meet the angle requirements, so as to be widely used for large scale of solar PV plants on mountains.

rammed pile vs ground screw


Features

1. Single pile design reduce half of the ramming time.

2. Ramming post quick piling method save the construction cost at site.

3. Most components are pre-assembled in factory, no extra cutting work required in the field.

4. Solution design case by case, with strong strength calculation capacity.

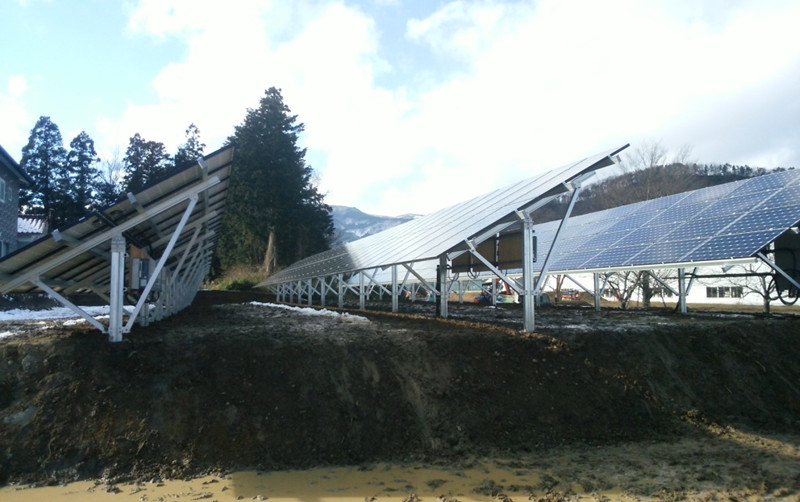

Pile mounting structure on flat land


flat land pile foundation ground mount

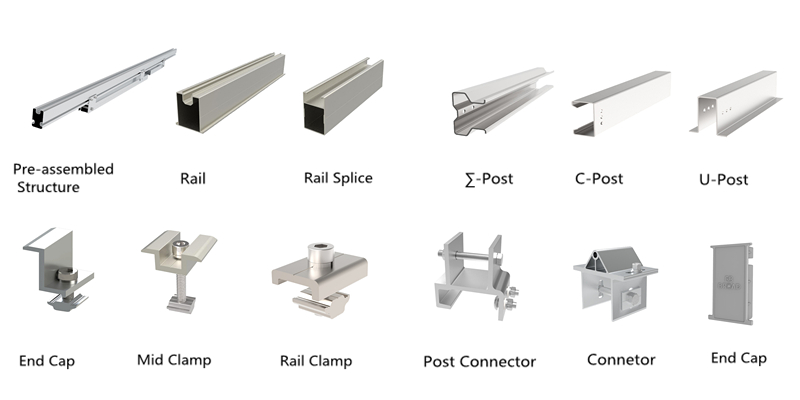

Components

components of ground pv mount

solar mounting system supplier


FAQ

Q1 : What is MMS in solar system?

A1 : Module mounting structure (MMS) is a structure that withholds the heart of an efficient solar PV power plant i.e. PV modules over its lifetime. It's made of aluminum or carbon steel.


Q2 : How do you design a solar panel structure?

A2 : PV mounting structure system shall be designed with specified loading capacity, stiffness, stability and deformation capacity. The design service life of the structure shall not be less than 25 years.
