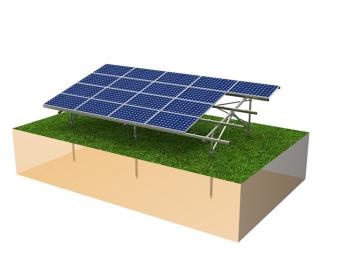

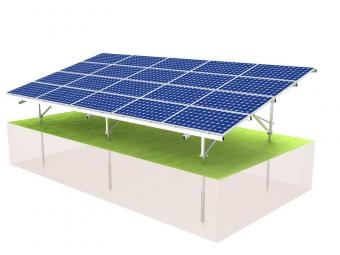

Ground Screw Solar Mounting System

Ground Solar Mounting System

Ground Screw Solar Mounting System

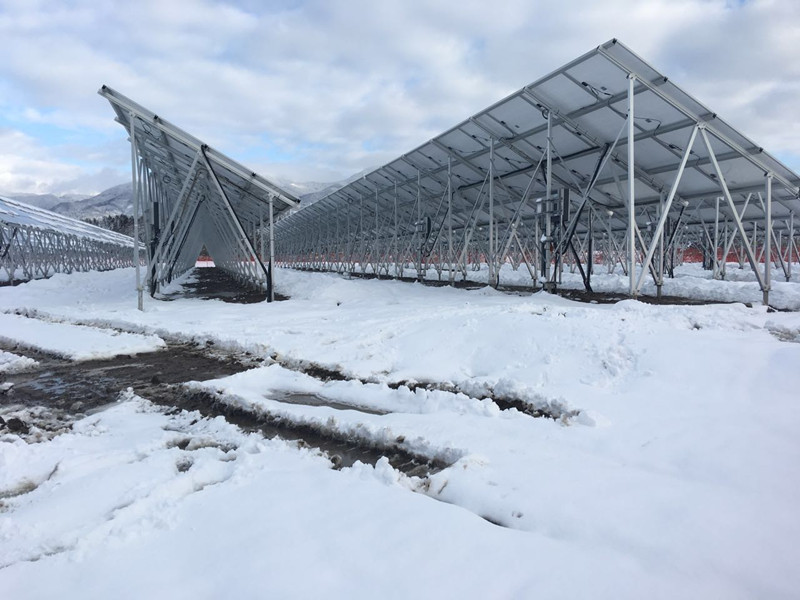

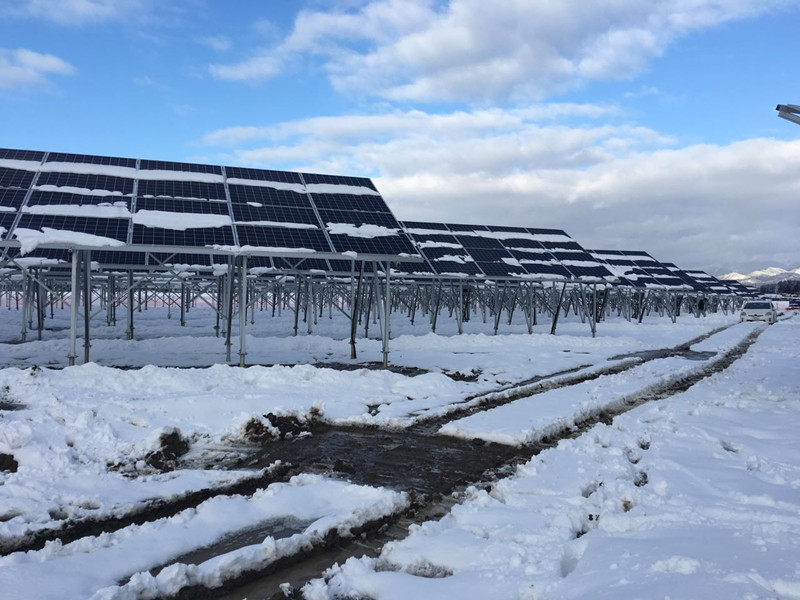

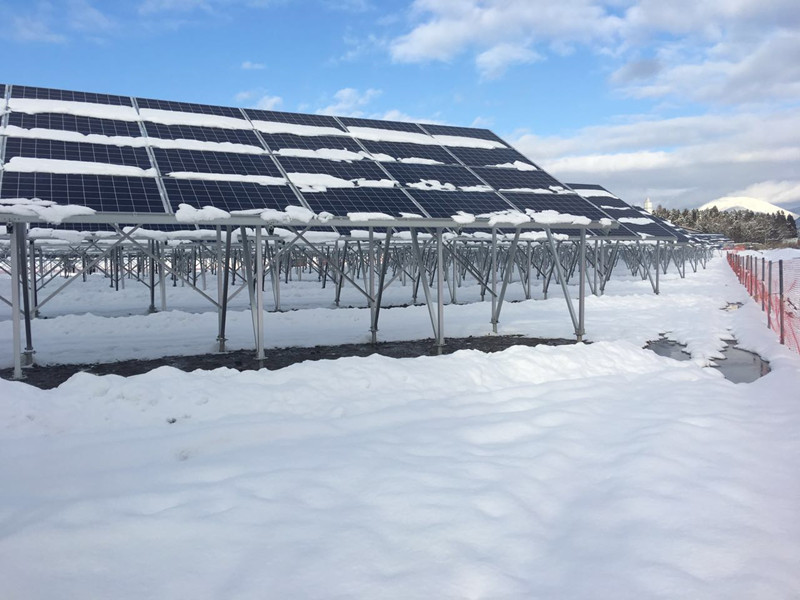

Ground Screw Solar Mounting System in Heavy Snow

Ground Screw Solar Mounting System in Heavy Snow

BROAD ground screw solar mounting system can be workable for flat land and inclined land. The structure is adjustable in North-South orientation and West-East orientation so as to be used in large plants in mountain areas.
  • item no.:

    BROAD GS1 Mount
  • brand:

    BROAD
  • Material:

    Aluminum
  • Snow Load:

    Up to 200cm
  • Wind Speed:

    60m/s
  • Install Site:

    Open Terrain
  • Foundation Type:

    Ground screws
  • product details

Overview

BROAD ground screw solar mounting system is workable for flat land and inclined land with a special design angle adjustable connector. BROAD technical team designs the mount structure with highly strong wind load and snow load resistance for extreme weather condition. With easy installation ground screw foundation, the ground mounting structure is suitable for commercial projects especially large scale plants. Highly pre-assembled structure can save much installation time and labor cost.

Ground solar mounting structure for sales

Features

1. AL6005-T5 Aluminum anodized material for structure and components.

2. Q235B hot-dip galvanized ground screw.

3. Workable for flat ground and sloped hill land.

4. Widely used for large scale plants and heavy snow area.

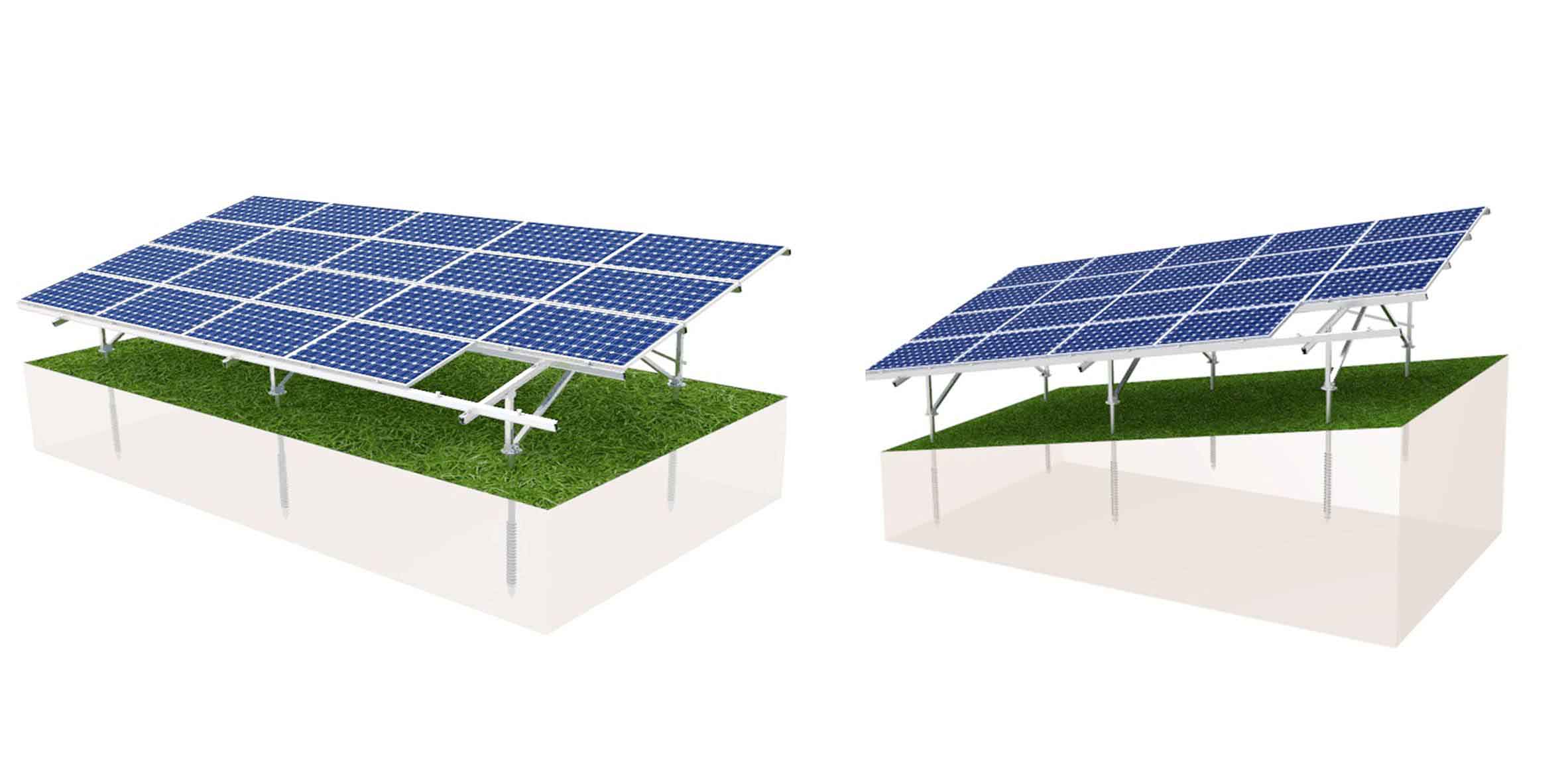

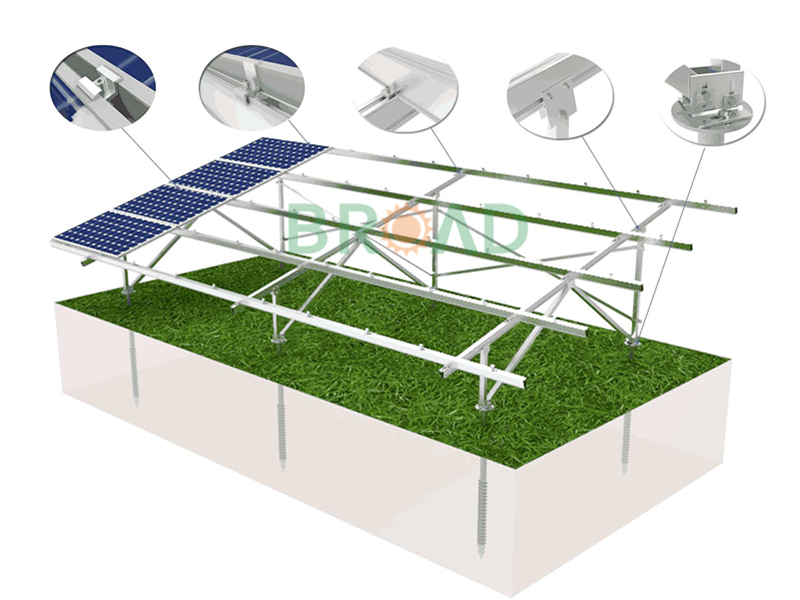

Even land solar mounting structure with ground screws

Adjustable solar mounting systems

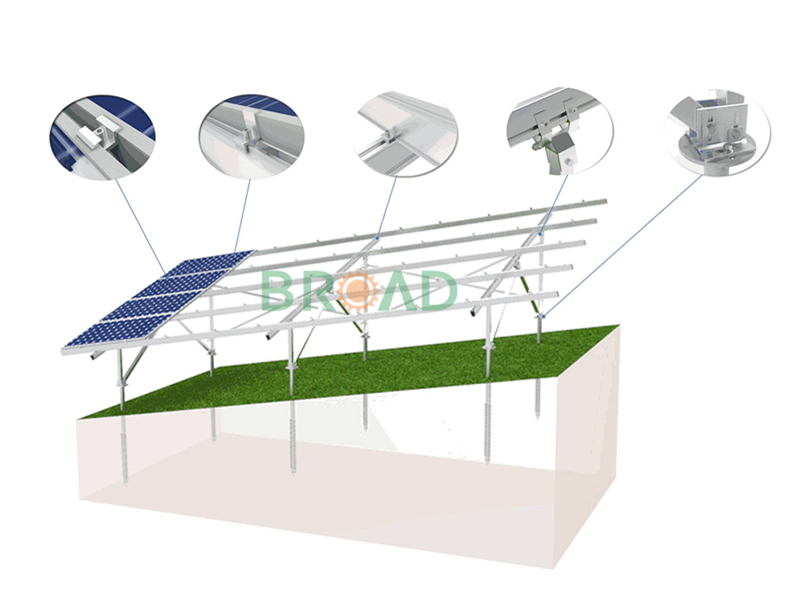

Uneven land solar mounting structure with ground screws

solar projects on hills or mountains

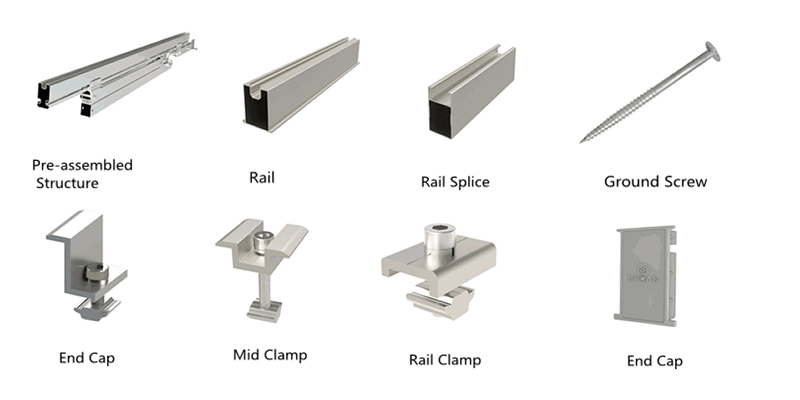

Components

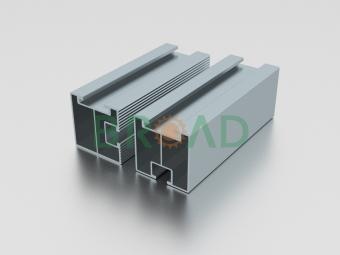

accessories of aluminum brackets


FAQ

Q : Can I use a regular screw as a ground screw?

A : It's not acceptable to use a regular screw as a ground screw. BROAD's ground screw is perfect matched the solar mounting structure as one of the ground solar mounting solutions.


Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
related products

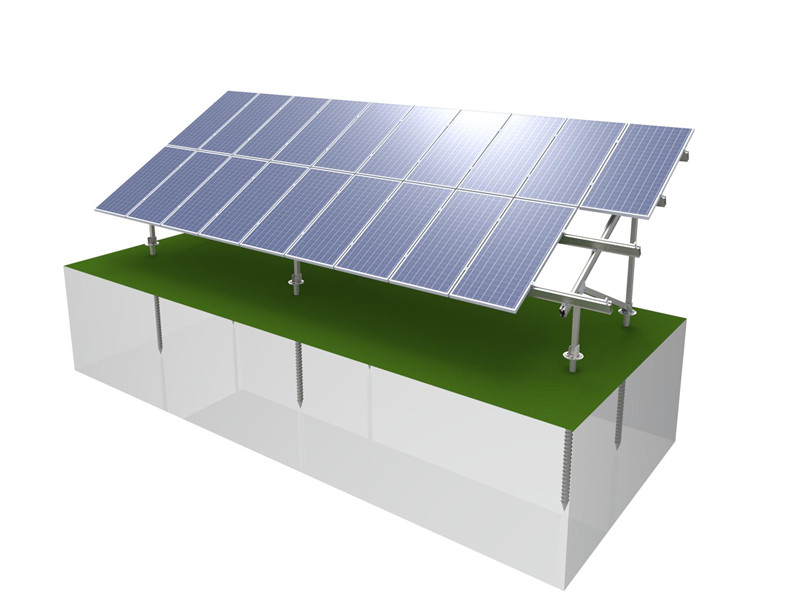

solar mounting systems with ground screws as foundation
