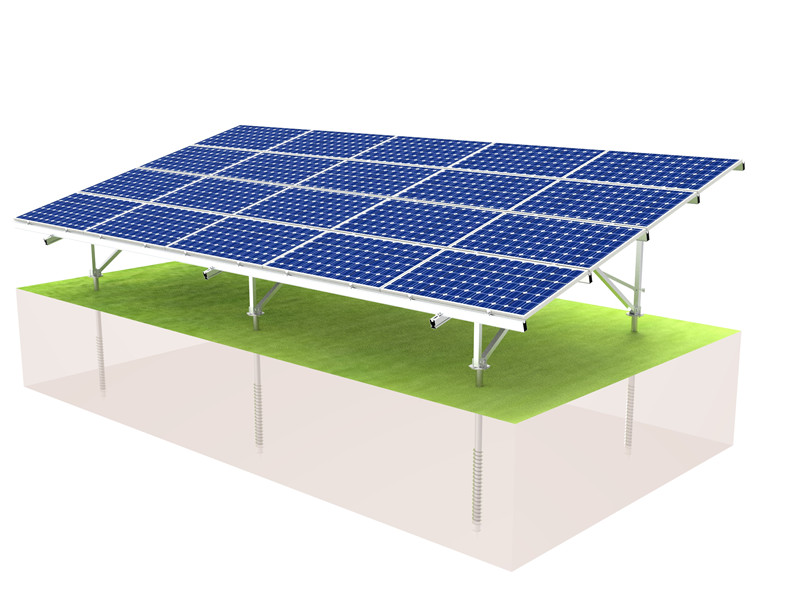

Ground Screw Solar Mounting System

Ground Screw Solar Mount Structure

BROAD GS1 can be made east-west adjustable. It is applied to concrete foundations and ground screw foundations. It is possible to shorten the construction period and reduce labor costs by making it to the pre-assembly frame which can be installed efficiently. It also guarantees maximum pressure load.
  • item no.:

    BROAD GS1 Mount
  • brand:

    BROAD
  • Material:

    Aluminum
  • Snow Load:

    Up to 200cm
  • Wind Speed:

    60m/s
  • Install Site:

    Open Terrain
  • Foundation Type:

    Ground screws
  • product details

Overview

BROAD ground screw solar mounting system can be workable for flat land and inclined land. It can be made east-west direction adjustable. It is possible to shorten the construction period by using spiral ground screw pile, which is with strong grip and cost saving.


Installation guide

screw piles vs concrete piles

ground screw mounting exporter

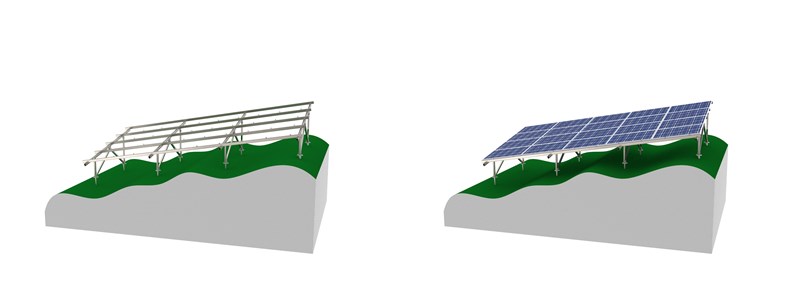

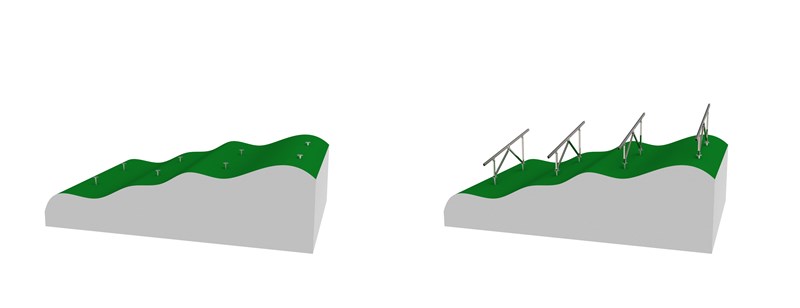

1. Pile ground screws accordingly

2. Install GS1 pre-assembled brackets

3. Install T rails

4. Install solar PV modules


Features

1. Ground screw foundation is applied for both even and uneven land.

2. It can be customized.

3. East-west direction is adjustable.

4. 10 years guarantee for quality assurance.

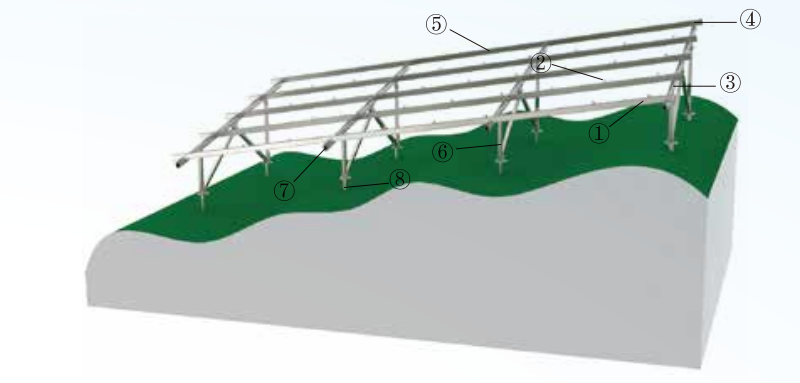

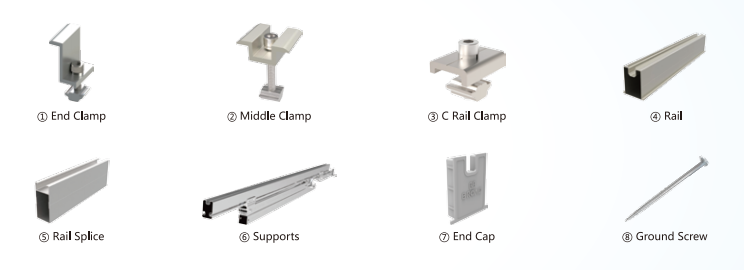

Components

solar ground screw suppliers

accessory of solar mounting bracket


FAQ

Q1 : What is a ground mount?

A1 : Solar mount bracket is a special bracket designed for placing, installing and fixing solar panels in solar photovoltaic power generation system. General materials are aluminum alloy, carbon steel and stainless steel.


Q2 : Are ground screws any good?

A2 : Spiral ground crew pile is a kind of building material in fashion now, with strong grip and cost saving.
