Concrete foundation solar mounting system is workable for flat land and sloped hill condition.
item no.:
BROAD GS1 Mountlead time:
within 2 working weeksproduct orgin:
Xiamen,Chinabrand:
BROADpayment:
TTMaterial:
Al6005-T5Snow Load:
Up to 200cmWind Speed:
Up to 60m/sInstall Site:
even/uneven landFoundation Type:
ConcreteOverview
With concrete base, the cost of ground mounting structure can be saved with less components. High pre-assembled of the structure and components make the installation easier and quicker at site.
Highly flexibility for different soil condition, concrete civil size can be built to be workable for flat ground and sloped hill land.
Features
1. AL6005-T5 Aluminum anodized material for structure and components.
2. Most economical solution for ground solar pv projects.
3. Strong anti-wind and anti-corrosive in heavy salty condition.
4. Concrete foundation is flexible for hard and sandy soil condition.

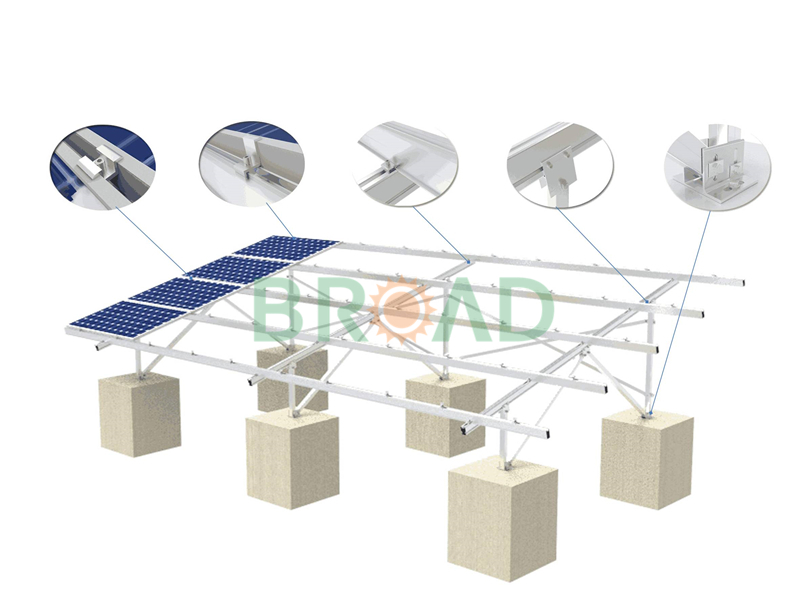

Even land solar mounting structure on concrete foundations

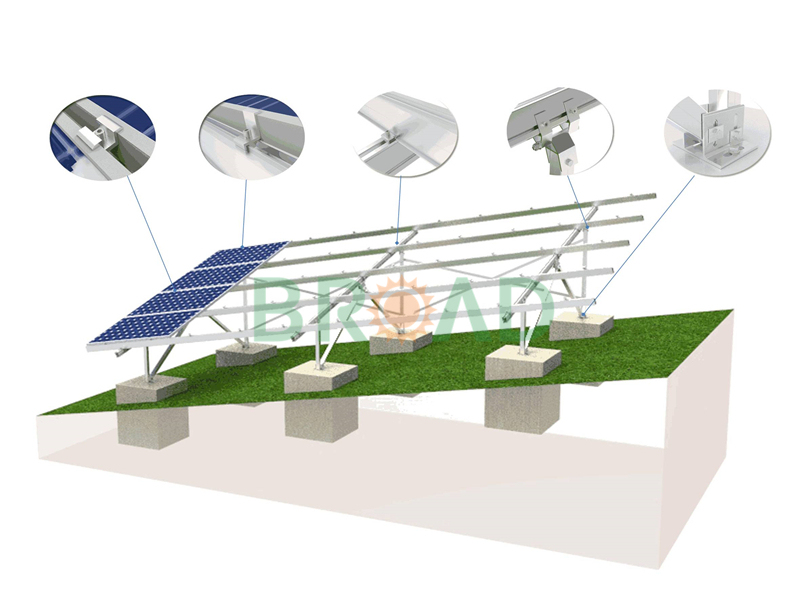

Uneven land solar mounting structure on concrete foundations
Components
Enquiry
We are now going to design for your project. Feel free to contact with us.
FAQ
Q1 : What is solar energy in simple words?
A1 : Solar energy is simply the light and heat that come from the sun. People can harness the sun's energy in a few different ways: Photovoltaic cells, which convert sunlight into electricity. BROAD solar PV mounting systems with concrete foundation can better support Photovoltaic cells to use solar energy.
