U Shape Hook for Trapezoid Roof

U Shape Hook for Trapezoid Roof

26 Dec 2019

Different from the ground solar projects, the installation of solar mounting systems on the roof requires higher safety requirement, which makes the construction process more difficult.Therefore, the simple design of roof support is more demanded for any market.

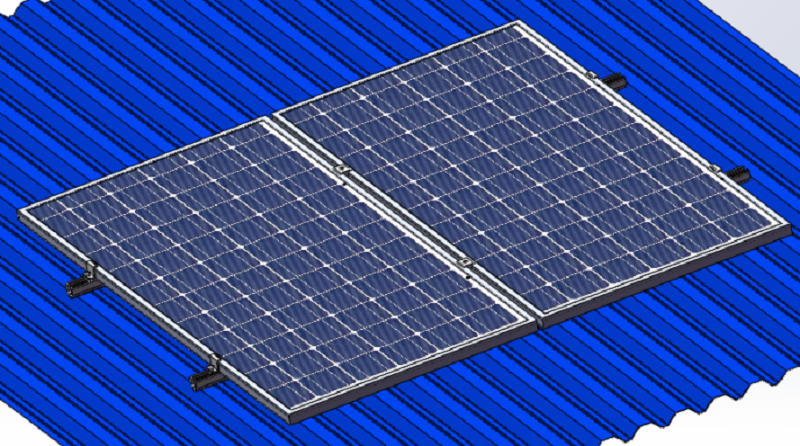

Especially for pitched tin roof which is much more dangerous with thin metal roof sheet.BROAD U shape Hook is a unique design for trapezoid roof. It has solved some problems installed on rooftop. Contained less components to avoid loss and easier to install for drilling self-drilling screws on the metal sheet.



The whole systems components.

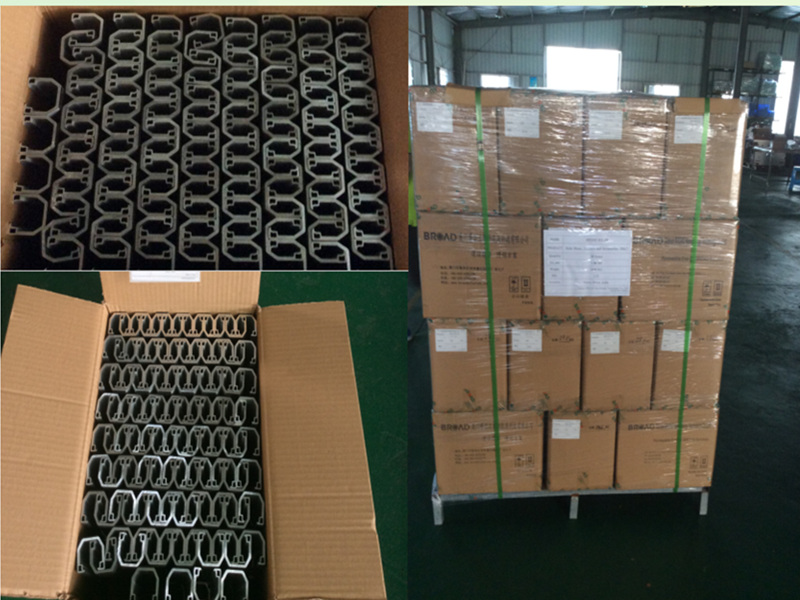

1.U shape hook with EPDM tape.

2.Self-screws for metal roof sheet drilling.

3.End Clamps /Mid Clamps with earthing function

Advantages:

1. Aluminum hook to be good anti-corrosion.

2. EPDM tape pasted to avoid leaking.

3. Customized length to meet the roof sheet dimension.

4. Landscape and Portrait are workable.

5. Most economical solution among all roof solar mounting systems.
